Type name

Portable Device

• Inspection welding diameter：
  0.1 mm to 9.9 mm [Indentation diameter 8mm or less; Effective sensor width: 11 mm]
  (The equipment may support the ranges other than the above. Please inquire us.)
• Applicable chip：
  R electrode
• Specimen sheet thickness：
  (Thickness of one inspection side )：
  0.5 to 3.5 mm (The equipment may support the ranges other than the left. Please inquire us.)
• Specimen sheet type：
  270 to 1500 MPa (The equipment may support the ranges other than the left. Please inquire us.)
• Specimen sheet surface treatment：
  No treatment, electrogalvanizing， hot-dip galvanizing (As for the aluminizing. please inquire us.)
• Number of specimen mating sheets：
  Two sheets, three sheets (Inspection from one-sided)
• Sensor edge material：
  FR
• Data storage：
  XLS form
• Setting of inspection condition：
  Set in the inspection screen. (The setting contents can be stored in the file.)
• Judgment method：

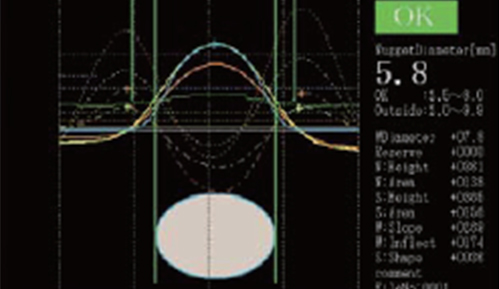

  OK/NG judgment, The diameter of a presumed nugget
• Option：
  Navigation mode, Inspection record management
• Operation temperature range：
  5°C to 40°C
• Operation humidity range：
  Up to 80%RH (No condensation occurs.)
• Power supply：
  AC85V to 240V, 0.5A　
  Two kinds of power supplies selectable.　

Detection principle and imaging

Comparison with other inspection methods

•

  Military grade platform

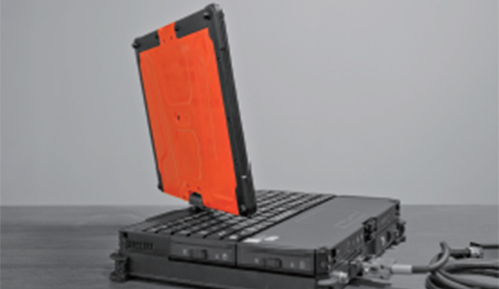

  The use of a military-grade laptop as a carrier, without any exposed electronic parts, provides sufficient endurance at the same time, the three defense performance fully meets the customer's use in harsh environments.

•

  Vortex array probe

  There is no need to change the probe in the measurement, one probe can measure almost all the solder joints, and simulate imaging. The probe tip has OK and NG indicators for easy reading

•

  Magnetic induction technology - no coupling media required

  The application of electromagnetic technology can be measured without contact. Reduced solder joint surface requirements: solder joint distortion, surface electrophoresis layer, surface paint layer, can be used directly.

•

  Automation - Industry 4.0

  Provides extremely fast inspection speed, each solder joint inspection time is less than 5 seconds. It can realize the measurement of the robot arm and is born for automation.
