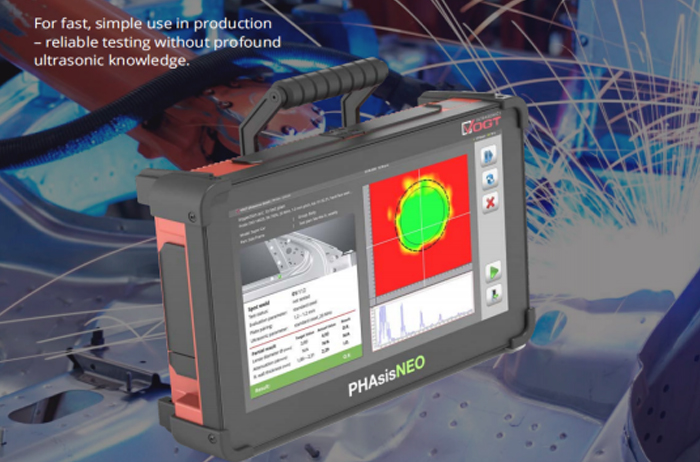

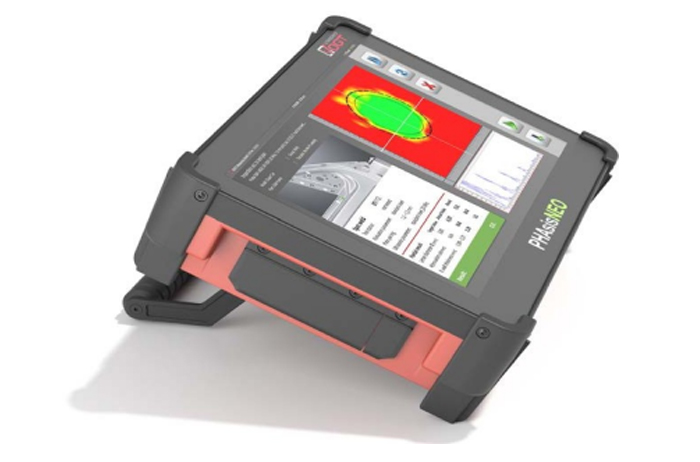

Ultrasonic inspection device

DESCRIPTION

1、121 elements,11 x 11 matrix for a high resolution of the lens diameter more accurate than 0.35 mm
2、Intuitive operation with touchscreen, keyboard or remote
3、"Ideal operation and screen display with good visibility – even from a distance (13” with 16:9 widescreen)"
4、"Free testing” mode: Test immediately with just a few clicks thanks to supplied standard parameter sets"
5、Testing of a 3-sheet connection from one side

Innovative probe technology
"Fixed rexolite delay or flexible water delay paths with membrane for best results – even on rough or uneven surfaces."

Technical Parameter

Dimensions：
350ⅹ280ⅹ90 mm
Weight：
5.5 kg
Display：
13.3” TFT, Multi-Touch 1920 x 1080 Pixel, 16:9, hardened, replaceable
PC Board：
Intel Pentium QuadCore @ 2.5 GHz, 8 GB RAM, 512 GB SSD
Protection class：
P 64, restricted
Battery：
2x Lithium-Ion, runtime 6.5 hours, hot swap capable
Phased Array test channels：
128, 16 thereof parallel
Digitization rate：
100MHz
Communication：
2 x USB 2.0, 1 x USB 3.0 1 x LAN 1GBit/s, WLAN, HDMI, Bluetooth 4.2
Max. IFF：
20 KHz
Max. pulse amplitude：
+/- 100 V (neg. square pulse)
Band width (-3dB)：
0.5 - 25 MHz
Pulse widt：
≥ 5 ns
Focal Laws：
>700 (virtual probes)
Power supply：
100 - 240 VAC 50 Hz - 60 Hz
Operation temperature：
0°C - 40°C
Relative Humidity：
80%, non-condensing
Cooling：
passive (no fan)

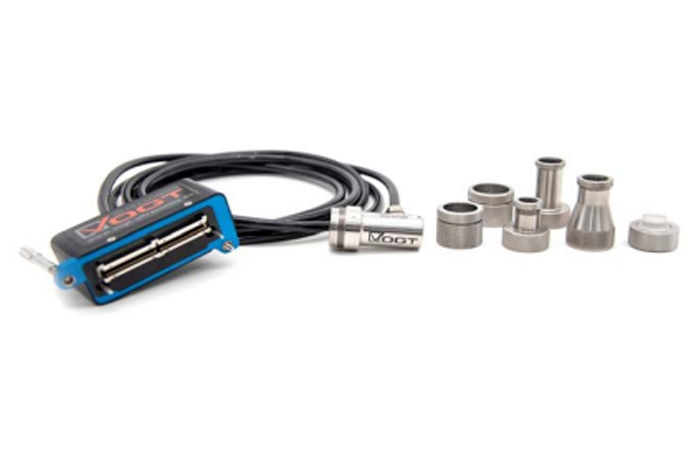

Standard Probe
Type：
Phased Array 2D Matrix
Number of elements：
11 x 11 arranged in square
Cable：
ong-Life 2.5 m; 5 m for robot applications
Nominal frequency：
12 MHz 20 MHz
Inspection area：
9 x 9 mm2 11.7 x 11.7 mm2
Physical resolution more precise than：
0.35mm 0.45mm

System high lights

• Precise testing of resistance welded spots of steelor aluminum sheets
• Minimal training time of approx. 4 hrs.
• 2- and 3-sheet joints with single sheet thicknessfrom 0.6 mm to 5 mm
• Extremely high image sequence and inspectionspeed due to 20,000 ultrasonic measurementsper second for high-resolution spot weld inspection
• More than 700 measuring points (A-scans)recorded in the inspection area per spot weld
• Storage of all A-scans for possible re-evaluationand correlation to destructive testing
• Imaging display of the spot weld as live scan(C-scan) and as result (D-scan, depth accurate)
• A universal standard probe; special solutionsavailable (e.g. for coarse grain structure/ aluminum / hard-to-reach areas)
• All in one device: management of inspectionplans, monitoring of inspection equipment, securedinspection according to inspection plan or flexiblewith one-klick presets or individual parameters in„free inspection“ mode
• Support of high probe frequencies up to 25 MHzfor reliable spot weld inspection
